No.

Item

Parameter

1

Name

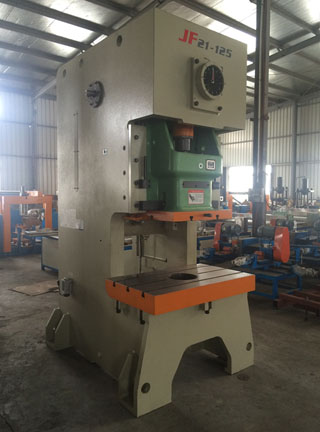

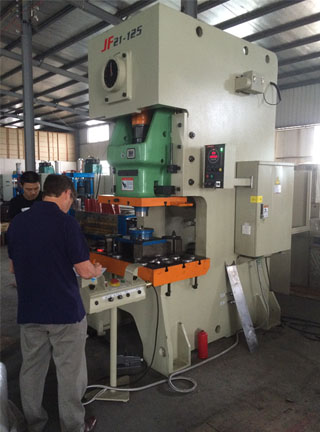

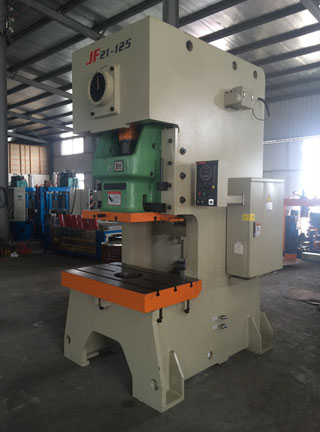

Pneumatic opening type punching machine

2

Model

JF21-125

3

Pressing force

1250KN

4

Slider stroke

160mm

5

Stroke frequency

50times/min

6

Max.mould height

350mm

7

Adjusted Mould height

80mm

8

Distance between slider middle and machine body

350mm

9

Work table size

680X1150mm

10

Work table thickness

140mm

11

Distance between pillar

760mm

12

Dimension

1850X1490X3060mm

13

Weight

9880Kg

14

Voltage

380V,3phases,50Hz

15

Main motor power

11KW

16

Installation area

1720X2090mm

Name

Model

Original

Main motor

11KW

Siemens

Brake motor

YPE series

China

Dry type clutch

LZ series

China

PLC

CPM2AE-60CER-A

Omron

AC contactor

LC1 series

France TE

Button,switch,indicator

France TE

Counter

N112

China

Proximity switch

Schneider

Solenoid valve

Japan TACO

Manual oil pump

125T

China

Manual lubricate pump

YML series

Taiwan

Pressure adjust valve

RC1/2

Taiwan
