No.

Item

Parameter

1

Name

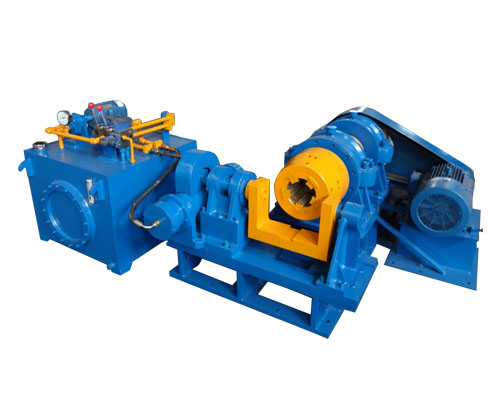

Heating type spinning machine

2

Model

N-180

3

Spinning diameter

100 to 180mm

4

Cylinder length

320 to 1400mm

5

Main motor model

Y200L2-6

6

Main motor speed

960r/min

7

Main motor power

22KW

8

Oil pump motor model

Y132S-4

9

Oil pump motor speed

1440r/min

10

Oil pump motor power

5.5KW

11

Main axle speed

340r/min

12

Oil pump model

CB-32

13

Rated pressure

12.5Mpa

14

Max.flow

32L/min

15

Clamp oil cylinder diameter

230mm

16

Stroke

40mm

17

Moving oil cylinder diameter

160mm

18

Moving cylinder force

5T

19

Clamping cylinder force

120T

20

Brake oil cylinder diameter

160mm

21

Stroke

90mm

22

Operation type

Manual

23

Dimension (L X W)

3100X2285

24

Weight

4000Kg
